Speedy 5 Ton Big Drum Cable Winch Puller for Tower Erection Cable Pulling

Name: Speedy 5 Ton Big Drum Cable Winch Puller for Tower Erection Cable Pulling
Brand: XINYA
Price: 1 USD

Buy cheap Speedy 5 Ton Big Drum Cable Winch Puller for Tower Erection Cable Pulling product

Brand Name : XINYA

Model Number : JJM-5Q

Certification : BV

Place of Origin : Jiangsu, China

MOQ : 2 sets

Price : US $1,250 - 2,500 / Set

Payment Terms : L/C, T/T,

Supply Ability : 1000 set/sets per month

Delivery Time : Five days after payment

Packaging Details : standard export wooden case

Power Source : petrol engine

Application : Power construction

Capacity : 50KN

Weight(kg) : 130

Material : steel

MOQ : 2sets

Usage : Pulling/hoisting

Condition : New

Warranty : One year

Contact Now

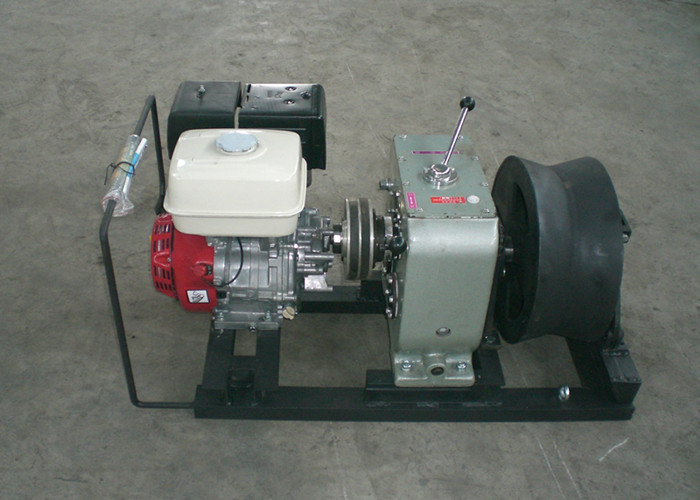

Speedy 5 Ton Big Drum With Petrol Engine Power Winch for Cable Pulling

Application

Speedy 5 Ton Big Drum With Petrol Engine Power Winch for Cable Pulling is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.

Technical Data

Model Type	Gear	Pulling Force(KN)	Pulling Speed(m/min)	Power	Dimension(mm)	Weight(kg)
JJM-5Q Gasoline Engine	Fast	9	24	9HP	1100498600	130
	Mid	15	14
	Mid	30	9
	Slow	50	5

Speedy 5 Ton Big Drum Cable Winch Puller for Tower Erection Cable Pulling
